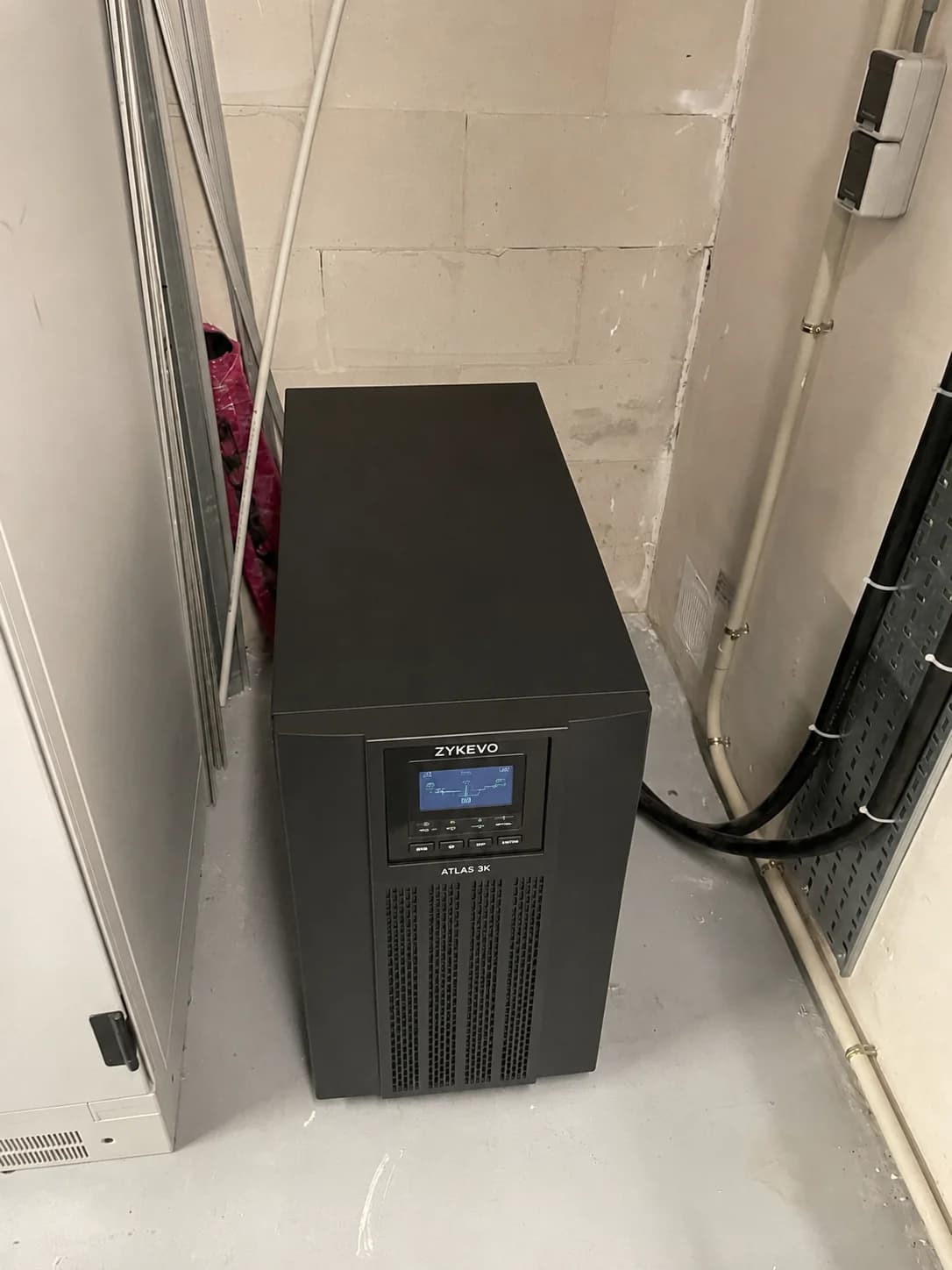

Single-phase UPS site reference
Representative ATLAS Series single-phase online UPS installed in an on-site equipment environment.
Field References
A selection of representative UPS, battery cabinet and high-voltage lithium battery installations and integration environments. Images are provided as field references; final project configuration depends on actual site and system requirements.
How to use these images
These images were supplied by ZYKEVO for project discussion. They are not presented as named customer case studies, factory claims, inventory evidence or a substitute for a confirmed datasheet.
Single-phase UPS
Three-phase UPS
TITAN 40kVA UPS field reference
TITAN Series three-phase UPS shown in an on-site equipment environment.

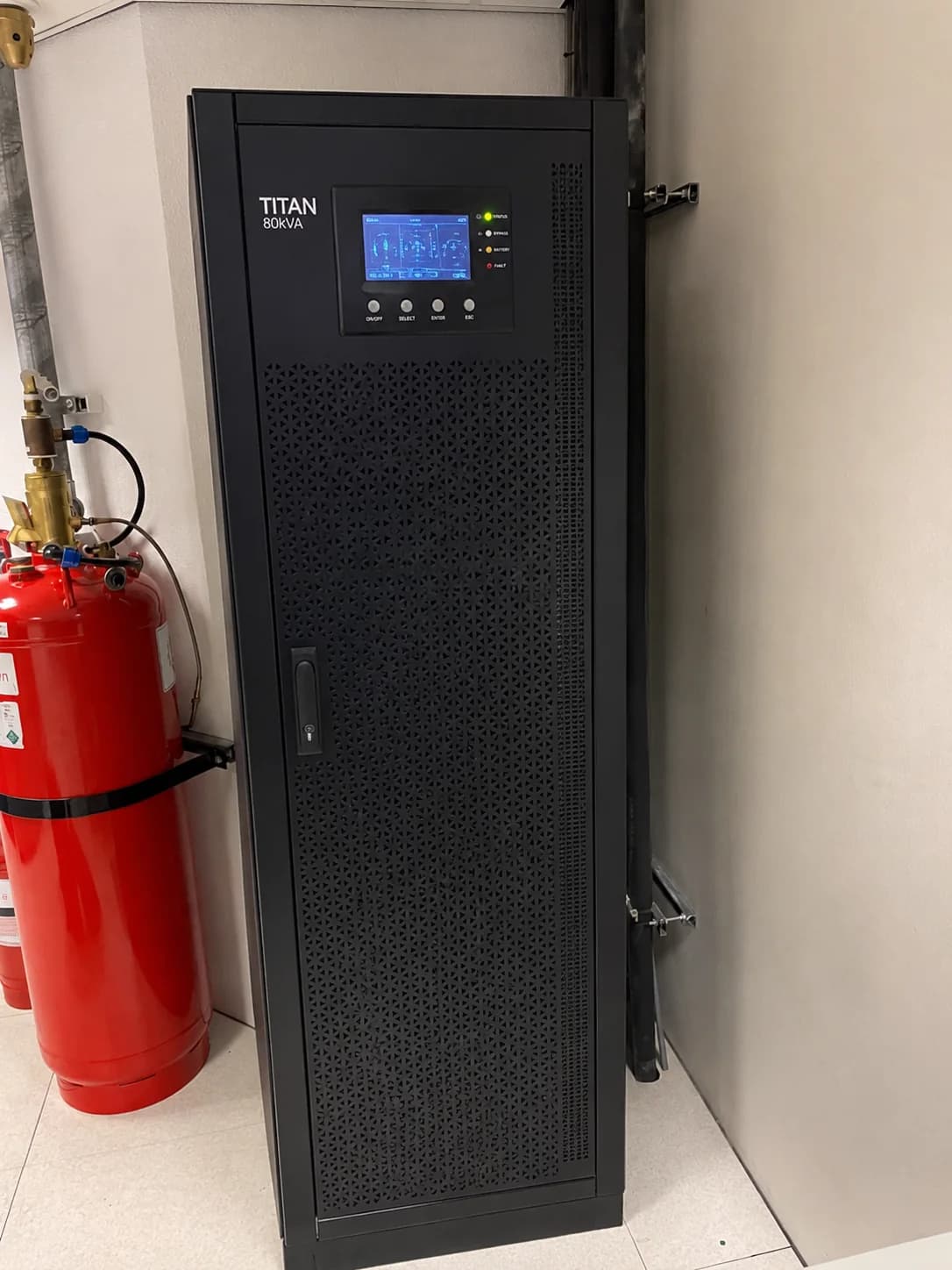

TITAN 80kVA UPS field reference
TITAN Series three-phase UPS shown in an on-site equipment environment.
Transformer-based UPS
Transformer-Based UPS Installation
Representative FORTRESS Series installation in an industrial or critical power environment.
M Series
Modular UPS Installation
Representative modular UPS installation in an on-site critical power environment.
UPS batteries and cabinets
Three-Phase UPS with Battery Cabinets
Representative TITAN Series installation with external battery cabinets for extended backup applications.

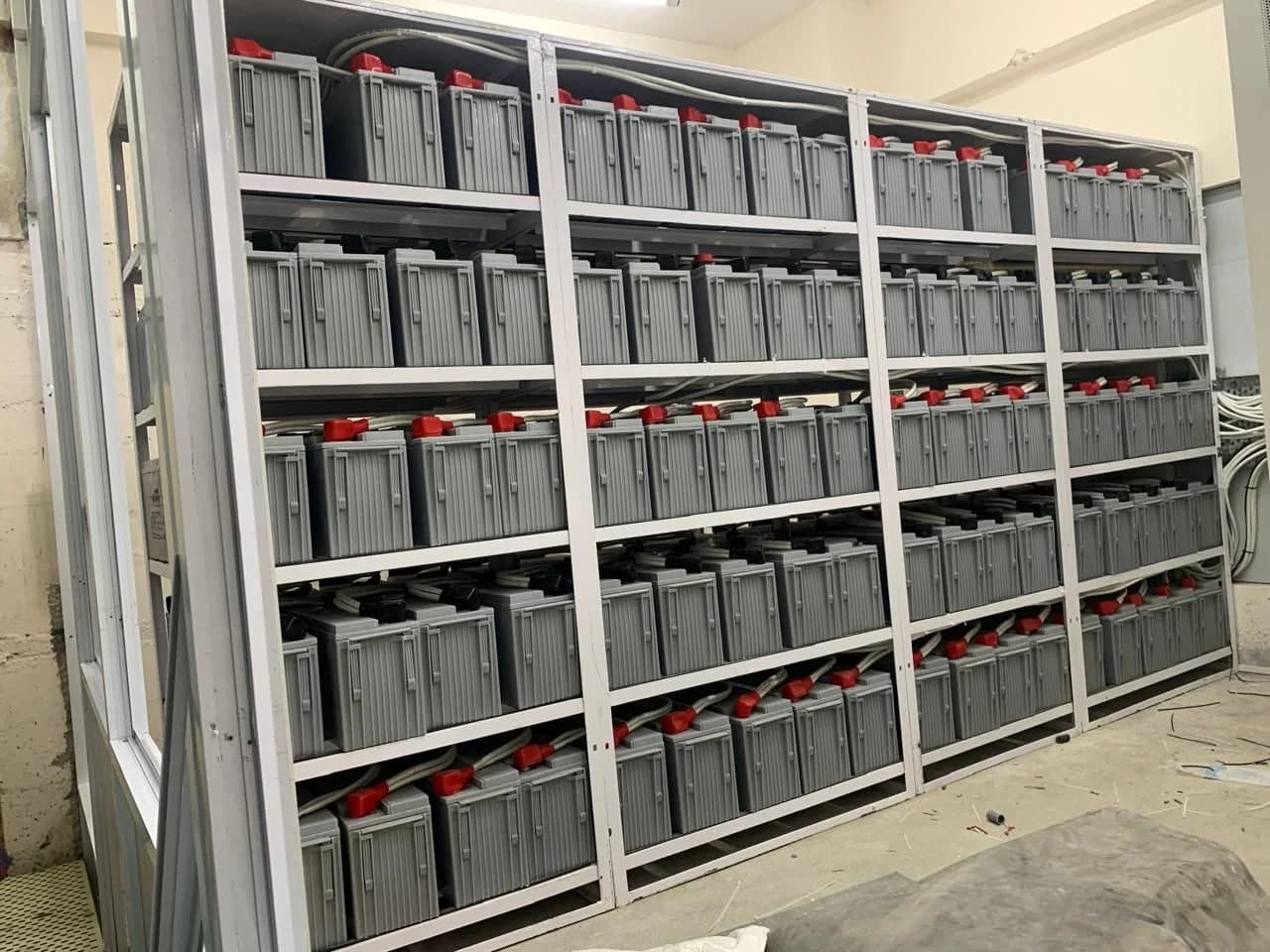

Battery rack installation reference
Battery rack arrangement shown as an external battery-system reference.
UPS & Battery Integration Testing
UPS & High-Voltage Battery Integration
High-voltage LiFePO4 battery systems connected with UPS equipment for project integration testing.
