192V UPS battery platform
192V LiFePO4 Battery for UPS Projects
Preliminary 192V high-rate and energy-type LiFePO4 battery directions for compatible UPS projects, selected through the complete DC window, charger, actual load, runtime, topology and BMS requirements.
Preliminary Technical Specification — nominal voltage alone does not confirm UPS compatibility.
Platform applications
Where the 192V direction may be reviewed
- Three-phase UPS projects using a reviewed 192V DC platform
- Server-room and critical IT backup
- Generator-bridging duty where short-time power is required
- Extended-runtime projects with a lower load-to-energy ratio
- Lead-acid-to-lithium retrofit evaluation
Already know the load and runtime? Use the Battery Planner to review the preliminary capacity requirement for a 192V-class UPS project.
Calculate Preliminary RequirementPreliminary Platform Data
192V preliminary model directions
The proposed catalogue codes below reproduce the preliminary platform values published on page 3 of the approved source document.
Swipe horizontally to view all parameters.
| Preliminary catalogue code | Direction | Capacity | Nominal energy | Operating range | Max charge | Max continuous discharge | Reference rate | Module architecture |
|---|---|---|---|---|---|---|---|---|
| ZY-HV192-25HProposed model | High-rate / Short-time | 25Ah | 4.8kWh | 168–207V | 25A | 100A | 4C | 192V 25Ah × 1 |
| ZY-HV192-50HProposed model | High-rate / Short-time | 50Ah | 9.6kWh | 168–207V | 50A | 200A | 4C | 64V 50Ah × 3 |
| ZY-HV192-100HProposed model | High-rate / Short-time | 100Ah | 19.2kWh | 168–207V | 100A | 400A | 4C | 64V 100Ah × 3 |
| ZY-HV192-200EProposed model | Energy-type / Extended-runtime | 200Ah | 38.4kWh | 168–207V | 200A | 200A | 1C | 48V 200Ah × 4 |
| ZY-HV192-314EProposed model | Energy-type / Extended-runtime | 314Ah | 60.2kWh | 168–207V | 150A | 150A | 0.48C | 48V 314Ah × 4 |
Proposed model. Preliminary catalogue code. Subject to project confirmation. Subject to OEM confirmation.
Common platform values
Published 192V reference boundaries
Preliminary battery operating range: 168–207V
Published maximum charging-voltage reference: 207V
Published cut-off reference range: 168–174V
Common interface direction: CAN, RS485 and dry contacts, subject to protocol review
Final configuration, dimensions, weight, discharge performance, communication functions and certification scope are subject to project requirements, model availability and OEM confirmation.
Module architecture
Module-level values build the UPS-side platform

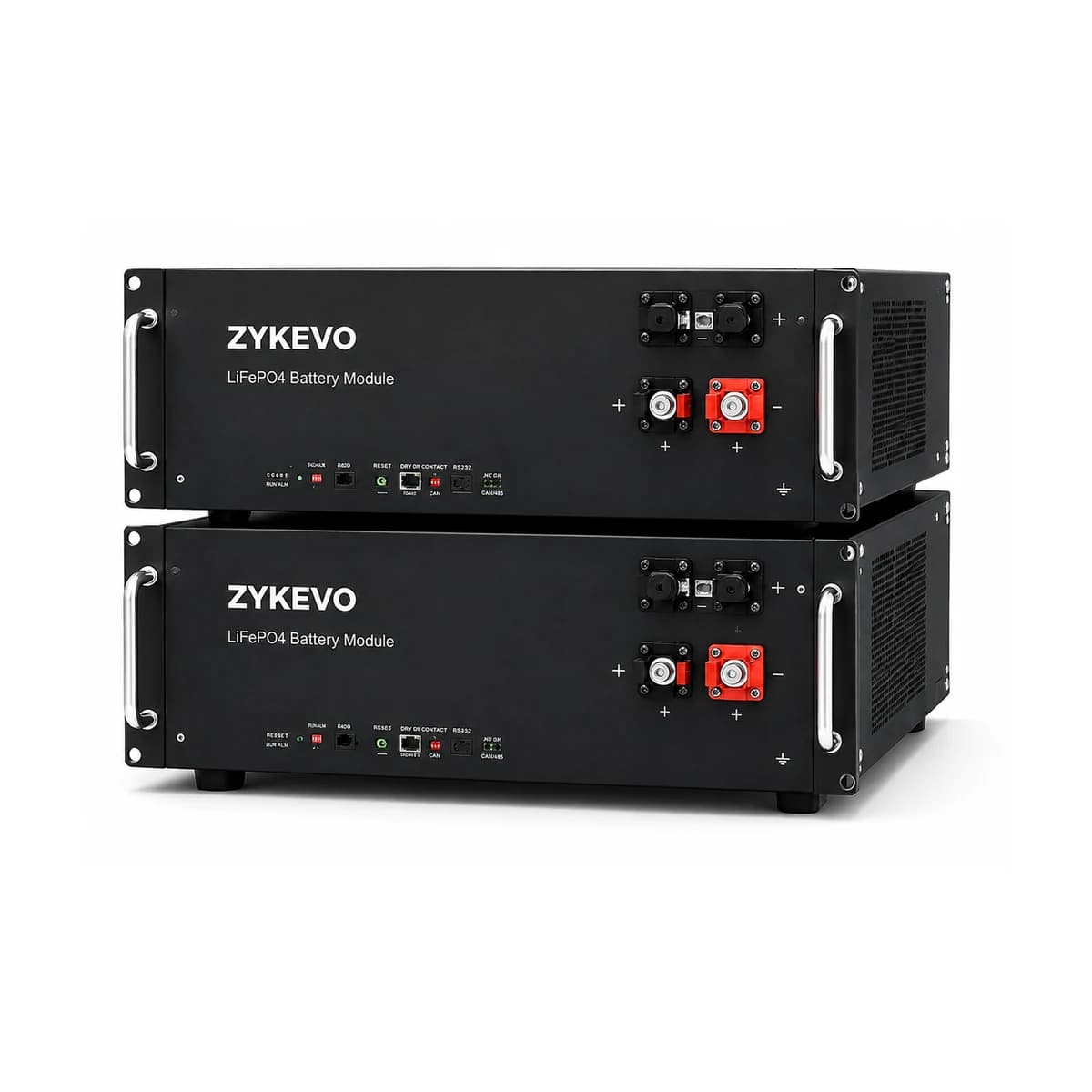

- Published high-rate directions include a 192V 25Ah assembly and 64V modules connected into the 192V platform.
- Published energy-type directions use 48V modules connected into the 192V platform.
- Module voltage describes the internal architecture; the UPS-side project platform remains 192V.
UPS matching notes
Compatibility review before model selection
- Confirm the UPS brand, exact model, topology and complete DC operating window.
- Confirm minimum UPS DC voltage and low-battery shutdown threshold.
- Use actual critical load in kW and the required backup duty.
- Confirm normal and maximum charging voltage and the available charging current.
- Confirm center-tap or two-wire full-bus structure.
- Confirm BMS protocol, alarm, cut-off and restart behavior.
Nominal voltage alone does not confirm UPS compatibility.
Battery selection must use the actual load in kW and the UPS minimum DC voltage, not only the UPS rated kVA or nominal battery voltage.
A physical CAN or RS485 interface does not by itself confirm UPS protocol compatibility.
Center-tap or two-wire full-bus structure must be confirmed from the actual UPS and battery circuit.
Final charging voltage, charge-current limit, cut-off voltage, protection behavior and communication protocol require project review.
Do not use a fixed 10-, 15- or 30-minute runtime claim without an approved constant-power discharge curve for the exact battery model, current level, end voltage and temperature.
Preliminary Technical Specification
Review the complete preliminary product matrix
Final configuration, dimensions, weight, discharge performance, communication functions and certification scope are subject to project requirements, model availability and OEM confirmation.
